Exciting products for the rocketeer.

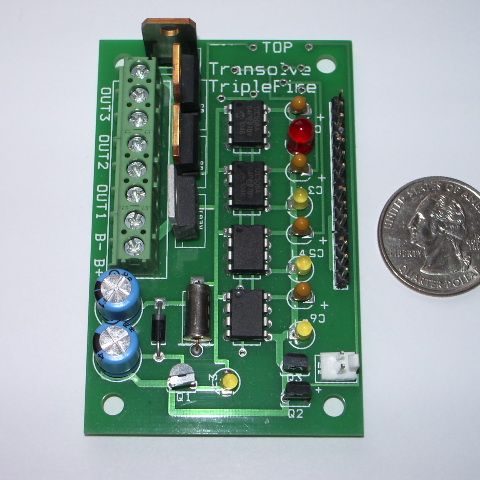

TripleFire 3 channel interface to a spread spectrum RC rcvr.

  The TripleFire unit is designed to allow the firing of 3 pyro outputs,
with a 4 channel spread spectrum radio.



The TripleFire is a radio control interface that provides 3 pyro channels. For use with spread spectrum radios only, the unit has dual safety lockouts. A dedicated ENABLE channel, and G-switch circuit (hybrid safe) both allow firing only when intended.

Typical uses include airstart, staging, and recovery system activation. Patch cables (4" stock or custom lengths available) to connect the receiver are included. Outputs are switched with 10A smartFETs (short circuit proof).

A 105dB beeper is slaved to ENABLE for testing. The rcvr is powered by the board, no extra battery is rqrd.

Suggested radios are the Spektrum DX7, DX6i, or similar spread spectrum transmitters with programmable toggle switches. Use of joysticks on low cost radios can also allow control (NO 72Mhz).  Radio must be "full range",  not "backyard flier"(700'), and have dual rcvr tech.  Use the $25 Hobbyking single rcvr radios at your own risk.

Size: 3.1" x 2" x 0.9"
Weight: 1.3 oz.
Power: 9-15 volt
Rcvr power: 5V
Output rating: 10A (smartFET)
Dual safety system: G-sw + ENABLE channel
Requires 4 ch spread spectrum receiver
Beeper on ENABLE
Connection cables included

$120

TripleFire
120.00 USD
( Sales tax and shipping costs not included )

TripleFire

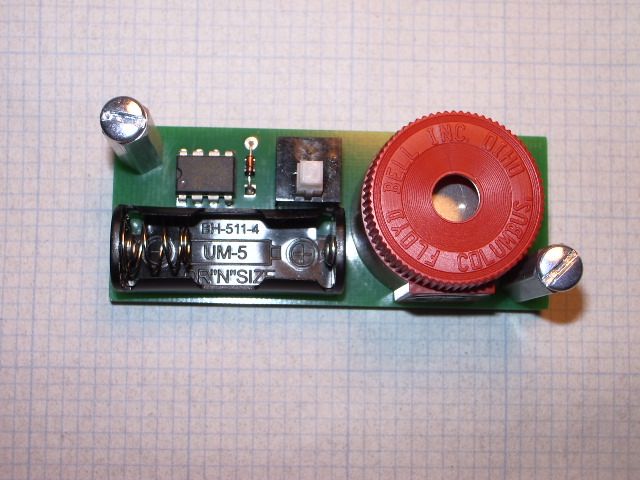

BeepX sonic locator.

Install the BeepX sonic beacon in your rocket, and reduce the chances of losing it in fields, brush, or the woods.


It is simple to mount inside the payload bay with a supplied template and screws.



Easy to use pushbutton activates it before flight, after a brief power up tone sequence, a 20 minute delay saves battery power. A loud pulsing then will emanate from the piezo 105dB beeper element.



11 hours battery life (battery supplied).



Hunt down your rocket in a cornfield.



Range up to 500'!

Size: 2.7" x 1.1" x 1"
Range: 500'
Weight: 31 grams
Battery: 23A, 12V
Life: 11 hours (13 with Duracell)

$36

BeepX
36.00 USD
( Sales tax and shipping costs not included )

BeepX

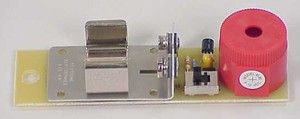

MiniTransBeep

Pack with chute, light activated.



Unit will not sound until exposure to light activates circuit.



In flight activation prolongs battery life. This is important when a long search for the rocket is necessary.



Transolve MiniTransBeep features a 105 dB sonic beacon and is activated by an electric eye upon deployment of the either the drogue parachute or main recovery system.



The MiniTransBeep eliminates the annoying screaming beeper sitting on the launch pad.



Size - 4.1" x 1.2" x 1"
Weight - 2.8 oz. w/battery
Bat Life - 30 hours+ (Duracell 9V)

$27

MiniTransBeep
27.00 USD
( Sales tax and shipping costs not included )

MiniTransBeep

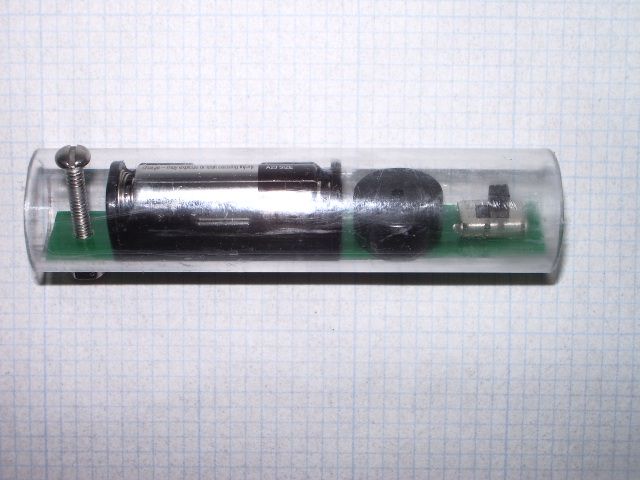

MicroTransBeep

Pack with chute, uses 12V battery and slide-switch arming.



Weighs 14 grams (with batt.).



Plastic case adds protection in ejectable operations (rig to recovery device).  Also amplifies beeper !



Size - 3.05" x 0.6" x 0.6"
Weight - 14 g. w/battery
Bat Life - 12 hours (mouser.com 573-23A)

$14

MicroTransBeep
14.00 USD
( Sales tax and shipping costs not included )

MicroTransBeep
